| System Type |
Portable 2-way full-range loudspeakers with powered mixer |
| Maximum SPL Output |
121 dB peak |
| Frequency Range (-10 dB) |
60 Hz - 20 kHz |
| Frequency Response (+/-3 dB) |
70 Hz - 18 kHz |
| AC Input |
100-120 V, 220-240 V 50/60 Hz |
| Amp Design |
Class D |
| System Power Rating |
300 W (2x 150 W stereo) |
| Output Connector |
2 x 1/4" TS (unbalanced) amplifier outputs |

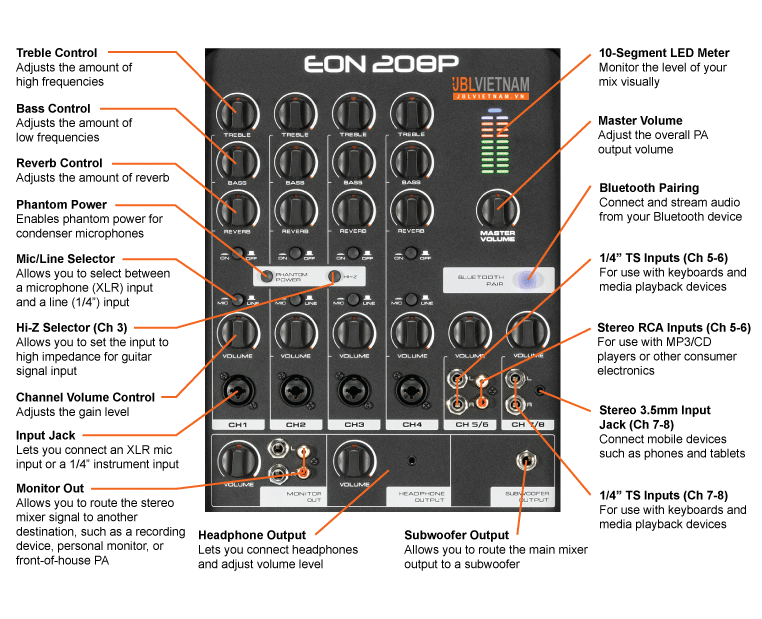

| Channels |
1-4: XLR/1/4" jack combo connectors
5-6: one pair of 1/4" balanced TRS jacks (stereo), and one pair of RCA jacks (stereo)
7-8: one pair of 1/4" balanced TRS jacks (stereo), and a 3.5mm stereo jack |
| Phantom Power |
CH1 and CH2 have phantom power control and share the same selection switch |
| Hi-Z Selection |
CH3 has a Hi-Z selection switch used for guitar signal input |
| Mixer Output Connectors |
Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS jacks (stereo)
Headphone Out: 3.5mm stereo jack
Subwoofer Out: 1/4" balanced TRS jack |
| Treble/Bass EQ |
Per-channel high- and low-shelf filters; +/- 12dB cut and boost |
| System Limiter |
On-board DSP limiting |
| LF Driver |
1x JBL 8" (203mm) woofer |
| HF Driver |
1x 1" Neodymuim black aluminum dome tweeter |
| Coverage Pattern |
100° horizontal x 60° vertical |
| Crossover Frequency |
2 kHz |
| Crossover Type |
2-way passive network, 2nd order filters (12dB cutoff per octave) |
| Enclosure |
Polypropylene |
| Suspension/Mounting |
36 mm pole socket |
| Handles |
One on top |
| Speaker Grille |
Powder-coated perforated steel |
| Shipping Package（HxWxD） |
22.6" (575 mm) x 30.5" (775 mm) x 15.7" (400 mm) |
| Net Weight |
38.8 lbs (17.6 kg) |
